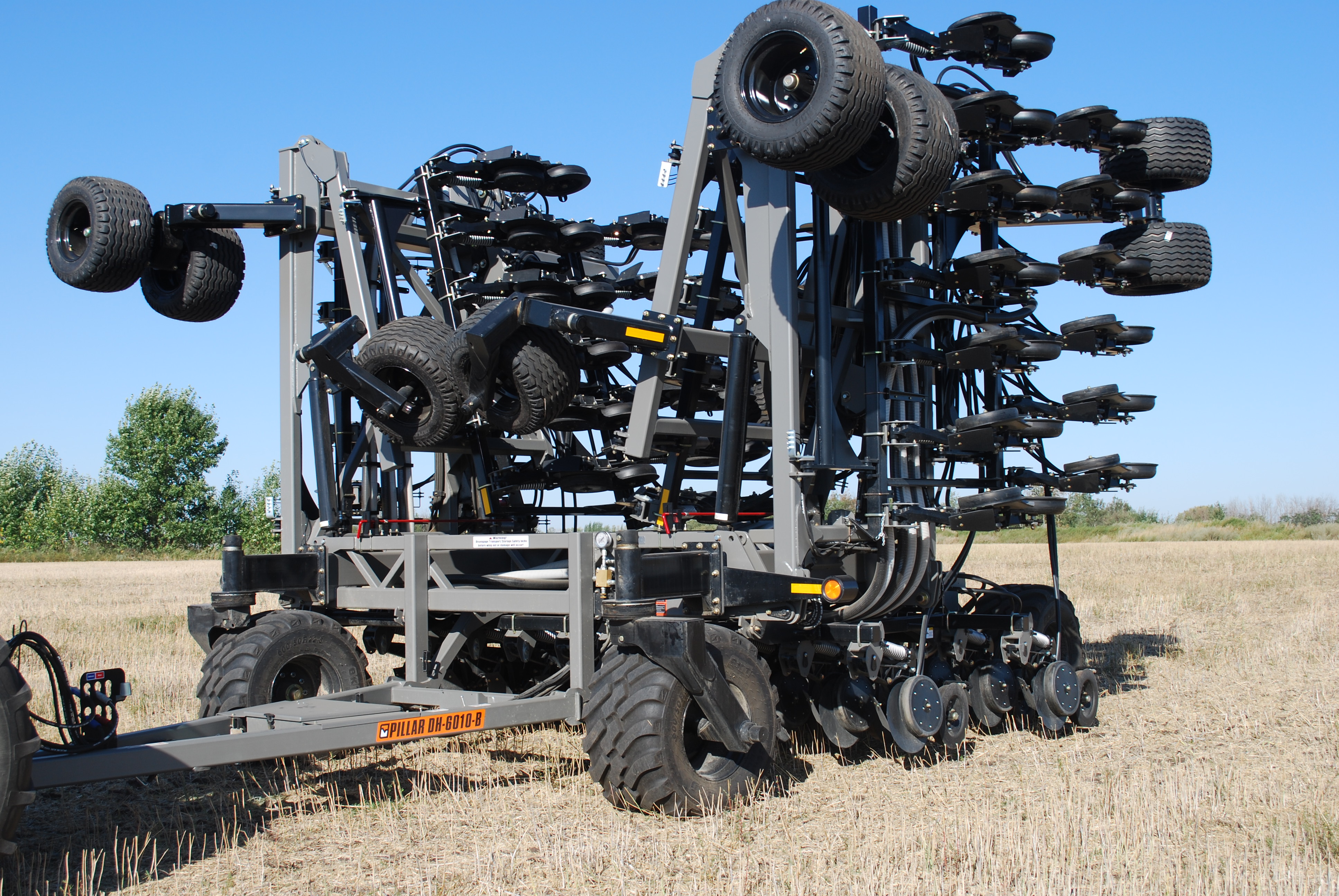

DH Series

Tried and true.

The DH Series is available in 30', 40', 50', and 60'. We built this drill for the farmer who wants a simple, reliable, and effective machine. The DH is the simplest drill in the industry to adjust.

Book a Demo

Up to 45 acresper hour

flotation hitchand tires

Big wheels available

Robust frame design.

Classic flex-wing design.

Floating hitch keeps wheels on the ground.

Accessible depth control cylinders and air pack components.

Easy depth adjustment.

Grease banks located at the front of the drill.

Key features and specifications

Scroll left to view all model specifications.

Brochure
All dimensions listed are for transport position.
Brochure
30-10
30-12
40-10
40-12
50-10
50-12
60-10
60-12
Weight
23,100 lb
(10,478 kg)
22,050 lb
(10,002 kg)
30,232 lb
(13,713 kg)
28,632 lb
(12,987 kg)
40,252 lb
(18,258 kg)
38,400 lb
(17,418 kg)
43,735 lb
(19,838 kg)
41,513 lb
(18,829 kg)
Height
12' 7"
(3.84 m)
12' 7"
(3.84 m)
16'6"
(5.03 m)
16'6"
(5.03 m)
16'6"
(5.03 m)
16'6"
(5.03 m)
16' 6"
(5.03 m)
16' 6"
(5.03 m)
Length
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
Width
20' 2"
(6.15 m)
20' 2"
(6.15 m)
20' 2"
(6.15 m)
20' 2"
(6.15 m)
23' 6"
(7.16 m)
23' 6"
(7.16 m)
23' 6"
(7.16 m)
23' 6"
(7.16 m)

Resources

Manual

DH Series Operator's Manual for 30', 40', 50' 60' drills.

Download Equipment Manual >
Parts

DH Series Parts Manual for 30', 40', 50' 60' drills.

Download Parts Manual
Videos

Helpful instructional videos and guides for your equipment.

Instructions >

Customer Testimonial

I have owned a Pillar drill for 9 years now, I started with a 50′ and now own a 60′. The drill has great trash clearance and minimal tillage to conserve moisture. Seed depth accuracy is excellent. I would highly recommend this drill for sandy and lighter clay soil. Seeding speed varies from 5-5.8 MPH depending on the amount of trash and seed depth. I’ve had great customer service from Pillar.

Kalin Deis

Fox valley, SK
